Serious Power. Full-Size Performance. Built to Push Further.

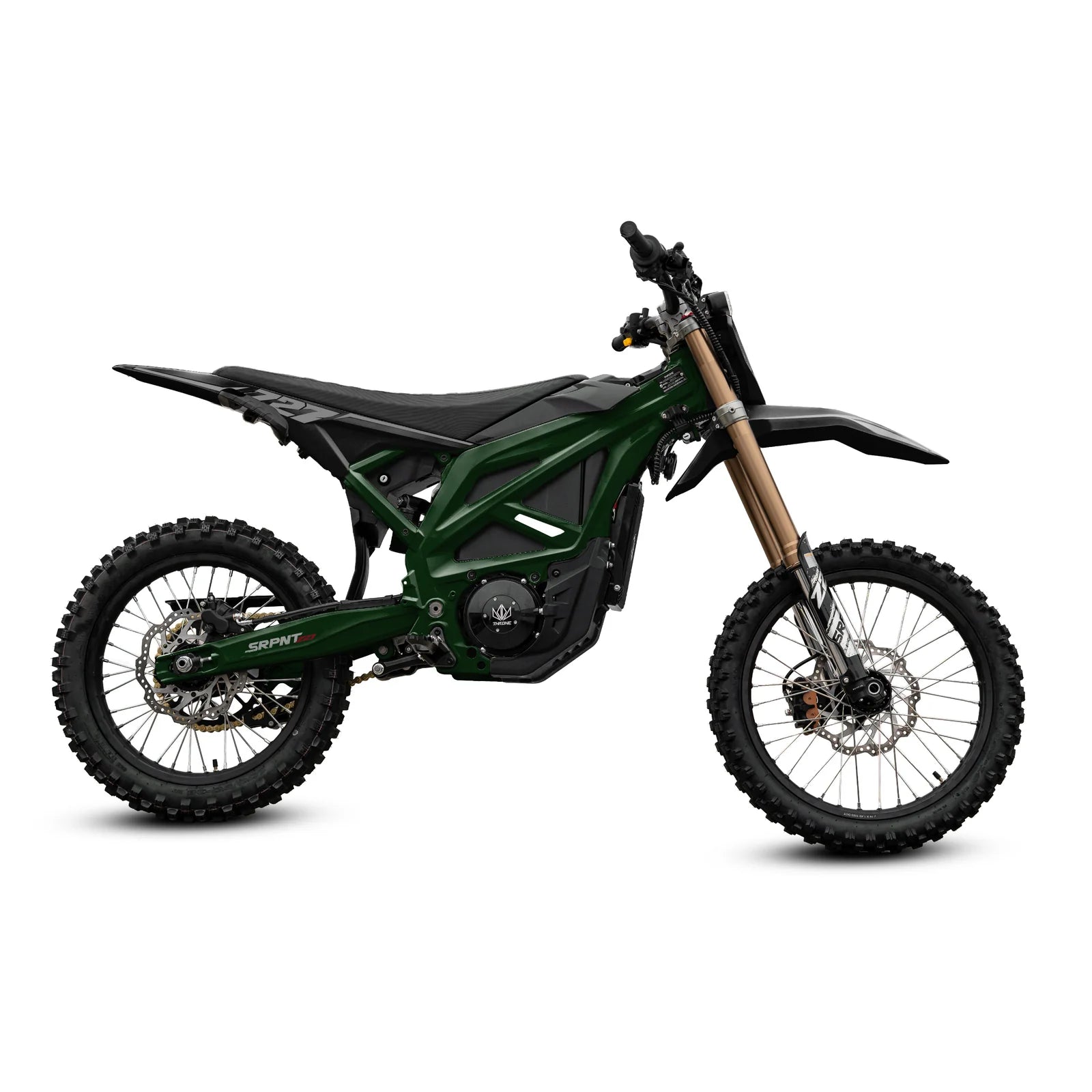

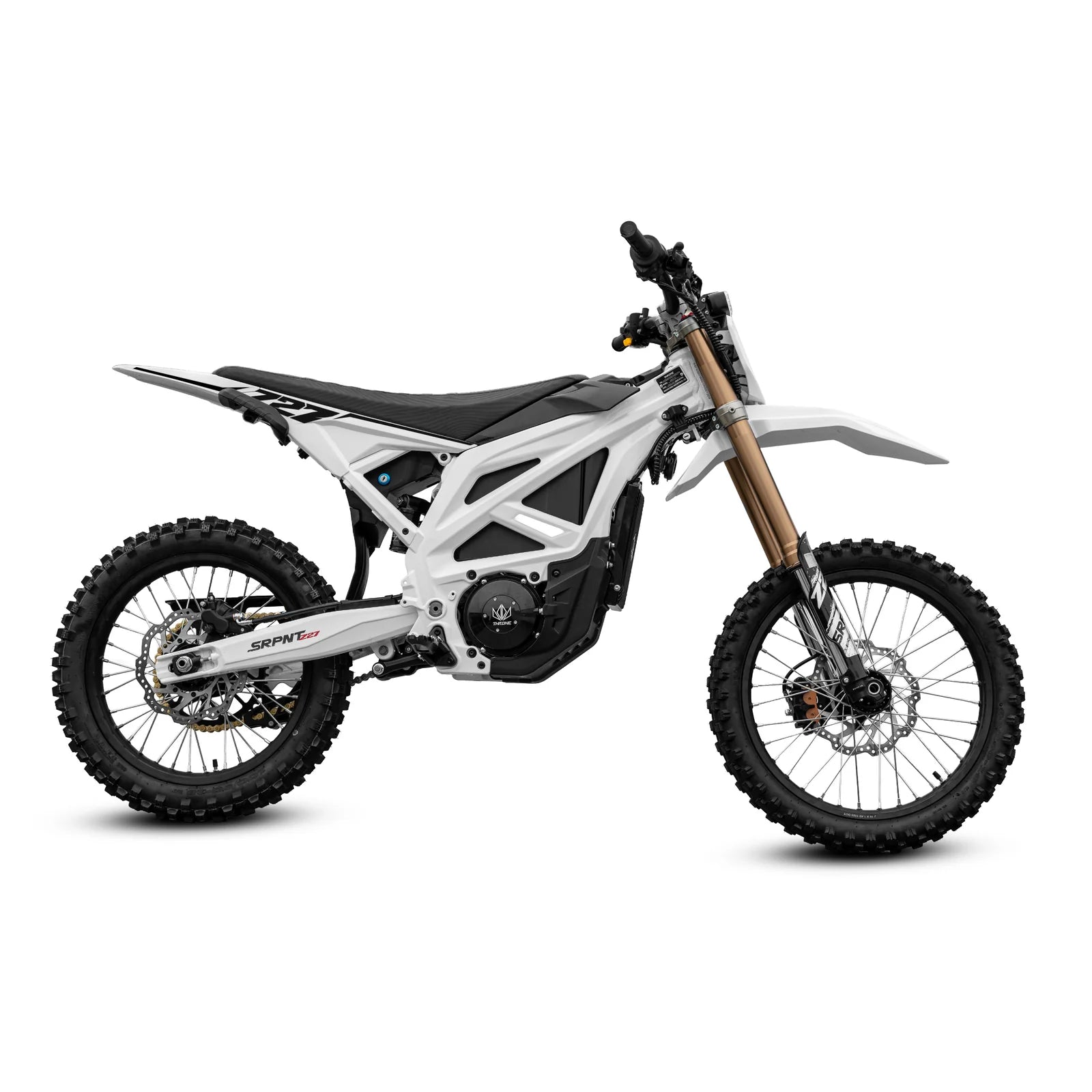

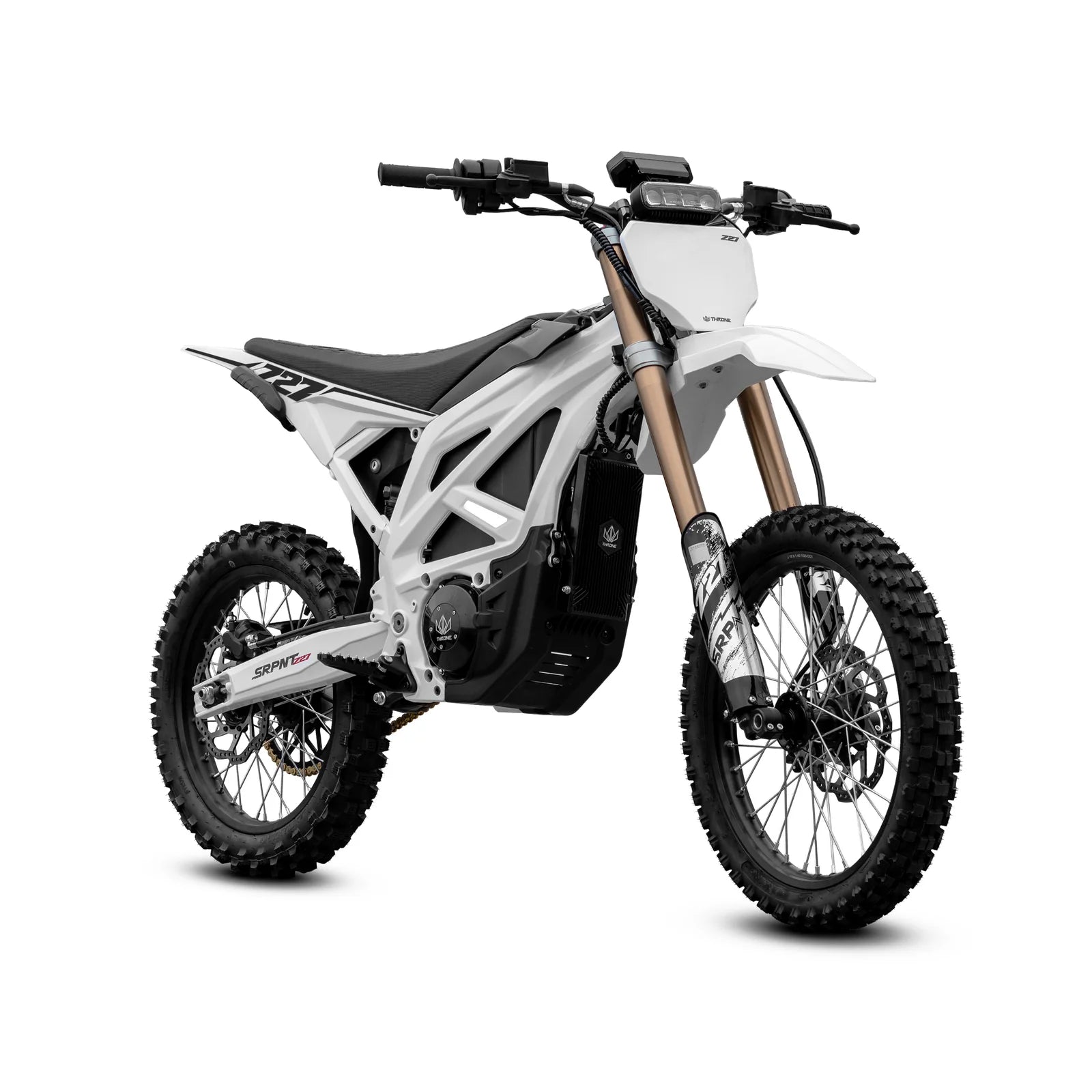

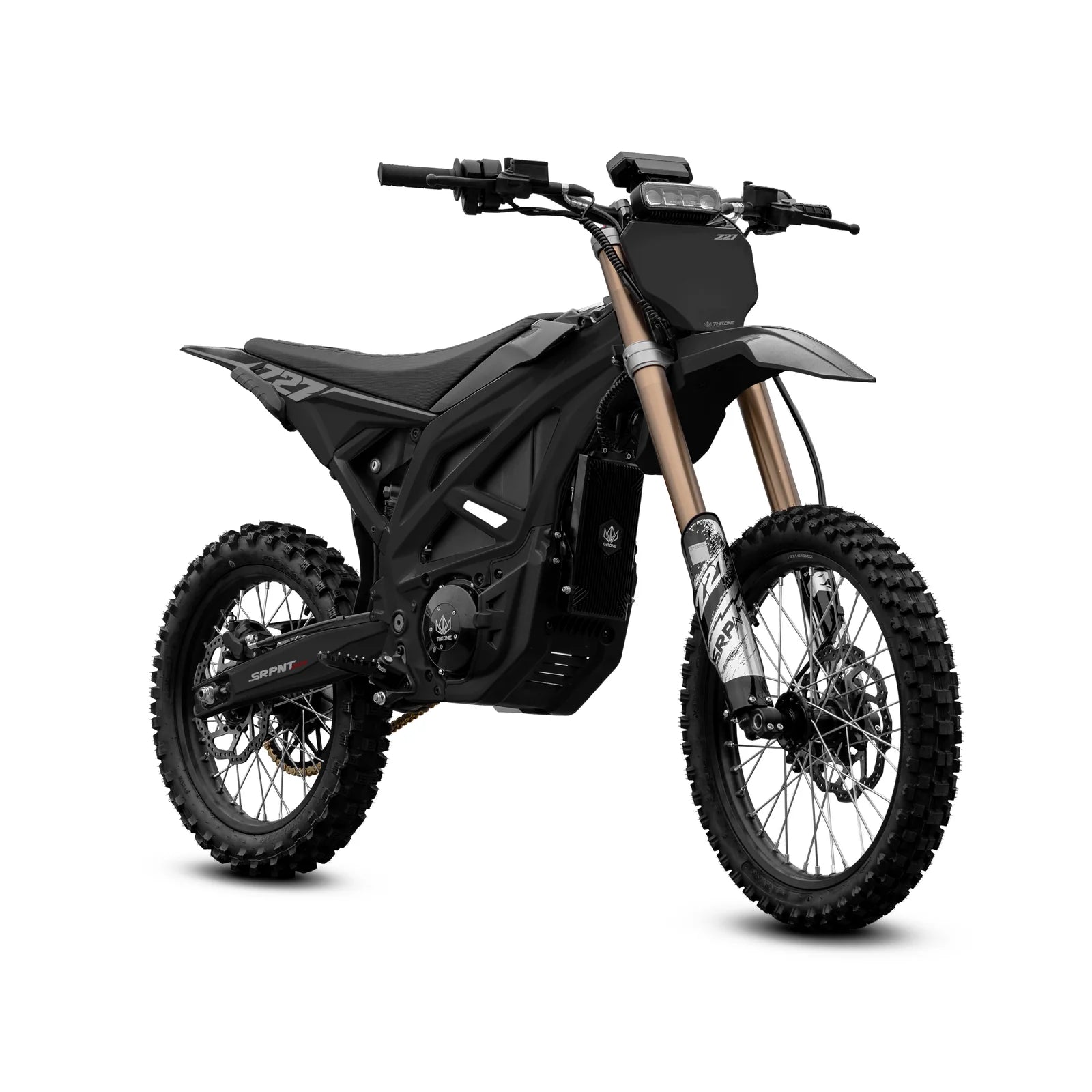

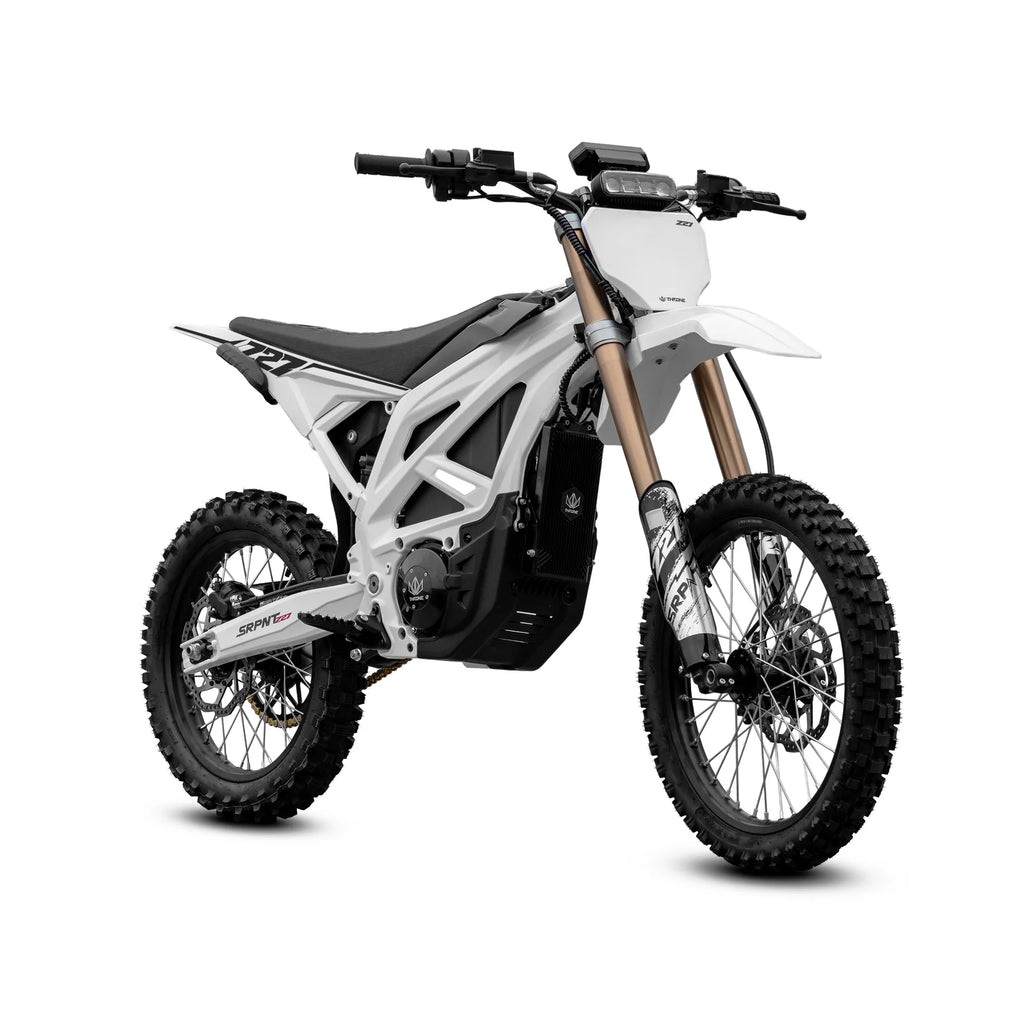

Meet the SPRNT Z27 by Throne Cycles, a high-performance electric dirt bike engineered for riders who want aggressive power, full-size handling, and race-inspired capability.

Powered by a 27kW mid-mounted motor and a 72V 60Ah Samsung-cell battery, the Z27 delivers hard acceleration, strong climbing power, and a top speed of up to 80 mph.

This is not a lightweight commuter pretending to be a dirt bike.

The SPRNT Z27 is built for riders who want real speed, real suspension travel, and the strength to handle demanding terrain.

27kW of Mid-Mounted Power

Immediate Torque Where It Matters Most

The Z27 uses a high-output 27kW mid-mounted motor designed to deliver a balanced ride and aggressive power throughout the range.

With up to 155 Nm of peak torque, the motor provides strong launches, responsive throttle control, and the muscle needed to handle steep climbs and challenging terrain.

Whether you are opening it up on a straightaway or powering through technical sections, the Z27 is designed to respond instantly.

Four Riding Modes

Power You Can Control

The SPRNT Z27 gives riders four selectable power modes for greater control across different riding conditions.

• High Mode

• Drive Mode

• Eco Mode

• Reverse

Switch between maximum performance, everyday riding, extended efficiency, and added maneuverability when needed.

Built Around a Forged Aluminum Chassis

Strength Without Unnecessary Bulk

The Z27 chassis and swingarm are constructed from No. 6061 T4 and T6 aluminum and forged under 3,000 tons of pressure.

This process creates a rigid, durable platform designed to remain stable under acceleration, hard braking, jumps, and uneven terrain.

A baked-paint finish adds long-lasting protection while giving the bike a clean, premium appearance.

Long-Travel Suspension

Designed for Aggressive Terrain

The SPRNT Z27 features an inverted front suspension fork with 240 mm of travel, paired with a KKE rear suspension link system.

The setup is built to absorb rough terrain, hard impacts, and changing surfaces while keeping the bike controlled and predictable.

With 300 mm of ground clearance, the Z27 is ready to take on rocks, ruts, trails, and steep transitions without constantly worrying about what is underneath you.

Full-Size Wheels and Trail-Ready Tires

The Z27 rides on a 19-inch front wheel and an 18-inch rear wheel, giving it the stance and handling of a true full-size dirt bike.

• 80/100-19 front tire

• 100/90-18 rear tire

• Alloy wheel hubs

• 48-tooth rear sprocket

• Heavy-duty 520 drive chain

The combination delivers confident traction, predictable cornering, and dependable power transfer.

Built to Climb

With a maximum climbing angle of up to 65 degrees, the SPRNT Z27 is designed to keep pulling when the terrain gets steep.

The combination of peak torque, mid-mounted motor placement, and a rigid aluminum chassis helps maintain balance and traction when climbing becomes more demanding.

Everyday Features Without Compromising Performance

The SPRNT Z27 includes the practical features riders need without taking away from its aggressive performance focus.

• LED headlight and rear light

• 12V horn

• USB and USB-C charging connections

• Side stand with integrated kill switch

• Reverse mode

• Multiple power settings

Everything is built around making the bike easier to ride, charge, and use.

Built for Riders Who Want More

The SPRNT Z27 combines high-output electric power, full-size dirt bike geometry, long-travel suspension, and premium aluminum construction into one serious machine.

It is fast, capable, and designed for riders who do not want to settle for entry-level performance.

SPRNT Z27 by Throne Cycles
27kW of electric performance, built to go further.

Specs at a Glance

Motor

• 27kW motor

• Mid-mounted position

• Air-cooled design

• Motor weight: 12.75 kg

• Motor external diameter: 164.5 mm

Controller

• PMSM controller

• Controller dimensions: 271 × 128 × 58 mm

• High, Drive, Eco, and Reverse modes

Power System

• 72V rated voltage

• 34 Nm rated torque

• 155 Nm peak torque

• 54 Nm motor shaft output torque at 1,000 RPM

• 6,800 RPM rated rotation speed

Top Speed

• Up to 80 mph

Transmission

• 13:48 gear ratio

• 520 drive chain

• 48-tooth rear sprocket

Battery

• 72V 60Ah battery

• Samsung battery cells

• Estimated battery life: 600 charge cycles

Charger

• 10A charger

• Approximately six-hour charging time

Electrical Features

• 12V CQC horn

• USB and USB-C charging ports

• LED headlight

• LED rear light

Frame and Swingarm

• No. 6061 T4 and T6 aluminum construction

• Chassis forged under 3,000 tons of pressure

• Baked-paint finish

Front Suspension

• Inverted front suspension fork

• 240 mm of travel

Rear Suspension

• KKE suspension link system

Wheels

• 1.4 × 19-inch front wheel

• 1.85 × 18-inch rear wheel

• Alloy hubs

Tires

• 80/100-19 front tire

• 100/90-18 rear tire

Weight

• 210 lbs.

Maximum Climb

• Up to 65 degrees

Ground Clearance

• 300 mm

• Approximately 11.8 inches

Wheelbase

• 1,380 mm

• Approximately 54.3 inches

Seat Height

• 880 mm

• Approximately 34.6 inches

Side Stand

• Included

• Integrated kill switch
